Raft Foundation: Modern Construction Solutions for Safe Ground

The foundation of a secure structure begins with solid groundwork. A raft foundation is a modern reinforced concrete system that distributes a building's load evenly across the ground, enhancing durability. This approach delivers long-lasting security against risks such as earthquakes and ground settlement.

Compared to traditional foundation types, raft foundations demonstrate superior performance, particularly on weak soils. This system represents a preferred solution in contemporary construction projects, both for engineering precision and cost efficiency.

At Yükselen Mimari, we develop specialized raft foundation solutions tailored to each ground's structural characteristics, integrating structural safety, energy efficiency, and sustainability.

What is a Raft Foundation and How Does It Work?

In engineering, a raft foundation is also known as a "floating foundation" or "mat foundation." A continuous reinforced concrete layer is created beneath the structure, allowing the entire building to rest as a single piece on this layer. This structural form increases the ground's bearing capacity while preventing loads from concentrating in localized areas.

In traditional isolated or continuous foundation systems, loads focus on specific column points. A raft foundation distributes these loads horizontally across the ground, reducing differential settlement. This feature provides significant advantages, especially in weak soil conditions.

The coordination between the reinforced concrete slab and reinforcement system is critical in the load transfer process. While concrete has high compressive strength, its tensile strength is low; therefore, steel reinforcements placed inside increase the system's resistance to tensile stresses. This engineering principle positions raft foundations at the center of modern construction safety standards.

Load Distribution and Load-Bearing System Logic in Raft Foundations

Load distribution in raft foundations operates on the principle of transferring all forces from the structure to the ground in a balanced manner. Steel reinforcements within the reinforced concrete slab carry tensile stresses, while the concrete layer resists compressive forces. This allows the structure to behave as a single unit against vertical and horizontal loads.

A structure's safety is achieved through engineering principles of load transfer, complementing material quality. Raft foundations distinguish themselves from traditional foundation types in this regard.

In this system, loads are distributed across the entire slab surface, beyond just column footings. Reinforcement elements in the reinforced concrete slab absorb potential tensile forces, while concrete demonstrates high resistance to compression. This collaboration between two materials enhances both the structure's rigidity (stiffness) and ductility (flexibility).

From a structural statics perspective, raft foundations enable the load-bearing system and ground to act as a unified whole. This reduces differential displacements during earthquakes or ground settlement. In engineering terminology, this is called "optimization of soil-structure interaction."

Modern analysis methods (such as Finite Element Method – FEM) simulate how loads distribute across the foundation, optimizing reinforcement placements accordingly. This balances both concrete consumption and costs.

Raft Foundation Implementation Process

Raft foundation implementation is a planned process that progresses from engineering calculations to site application. Each stage plays a critical role in ensuring the structure settles correctly on the ground and maintains long-term durability.

1. Soil Investigation and Preparation

Across Antalya, where ground conditions vary regionally particularly in the residential developments of Altıntaş and Aksu the raft foundation system offers a reliable solution against high groundwater levels and heterogeneous soil structures.

The first step involves conducting a soil investigation. This study determines the ground's bearing capacity, groundwater level, and compaction characteristics. Excavation work is then completed and the base surface is leveled. Soil improvement is applied when necessary.

2. Formwork System Installation

Formwork preserves the concrete's geometry. At this stage, the boundaries of the raft foundation slab are determined and formwork is securely fixed. Formwork errors can create imbalances in load distribution, making this step require high precision.

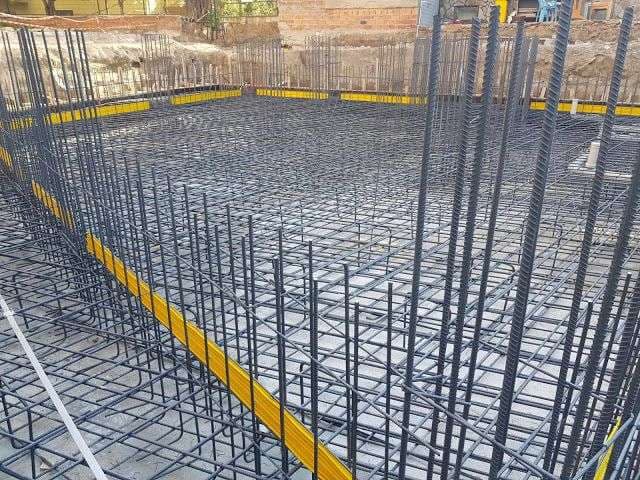

3. Reinforcement (Steel Mesh) Placement

Reinforcement is one of the elements determining the strength of the reinforced concrete system. Reinforcement bars are placed at specific intervals, carrying tensile forces and increasing the foundation's rigidity. The appropriate reinforcement ratio is determined according to the project and load analysis.

4. Concrete Pouring and Vibration

C25–C30 class concrete is poured to ensure homogeneous distribution. Vibration removes air pockets within the concrete, increasing strength. This stage is the critical process determining the foundation's "structural integrity."

5. Curing (Maturation) Process

After pouring, maintaining moisture balance on the concrete surface is essential. The curing process typically lasts 7–14 days, during which concrete gains strength. Neglecting curing leads to cracks and strength losses.

6. Quality Control and Final Inspection

In the final stage, foundation surface flatness, reinforcement placement, and concrete strength are verified. These controls guarantee safety for the loads the structure will bear in subsequent phases.

Raft Foundation from an Earthquake Safety Perspective

A raft foundation dissipates energy by spreading horizontal and vertical forces across the entire ground area during earthquakes. The reinforced concrete slab and reinforcement system work together to increase rigidity, allowing the building to move as a single unit and minimizing structural damage.

During earthquakes, the critical issue is how loads transfer to the structure. A raft foundation distributes accelerations from the ground evenly throughout the structure. This behavior reduces stresses in column-beam connections and limits plastic hinge formations.

According to the Earthquake Code, raft foundations are recommended for weak or heterogeneous soils. This system increases a building's resistance to horizontal forces through a high rigidity and ductility combination.

Engineering analyses demonstrate that in structures using raft foundations, the load-bearing system deformation rate during earthquakes of magnitude 7 and above is 25-30% lower compared to traditional foundations. This difference occurs because load transfer concentrates in isolated points.

Additionally, the large surface area of raft foundations reduces stress concentrations in the ground, preventing what is known as "differential settlement" or unbalanced movements. Consequently, the structure shows less permanent deformation after earthquakes.

A structure’s earthquake resistance is not achieved solely through the right foundation system, but through a holistic engineering approach.
For more in-depth insights, you can review our blog post titled “How to Build an Earthquake-Resistant House.”
In this guide, you will find information on structural system design, soil analysis, material selection, and safe construction planning in accordance with regulatory standards.

Advantages and Disadvantages of Raft Foundations

Raft foundations provide numerous advantages in terms of structural safety and durability. Balanced load distribution, longevity, and earthquake performance are prominent benefits. However, they are ideal for specific soil types; in some cases, cost and application limitations should be considered.

Advantages of Raft Foundations

1. High Durability and Longevity

Raft foundations reduce stress intensities by transferring all structural loads evenly to the ground. This feature makes the structure more resistant to both earthquake and settlement-induced deformations.

2. Earthquake Performance and Structural Balance

The reinforced concrete slab strengthened with a reinforcement system absorbs horizontal forces. This preserves the structure's "single-unit behavior." Raft foundations provide high safety standards, particularly in 5–10 story residential and industrial buildings.

3. Implementation Ease and Cost Efficiency

Pouring the foundation in a single operation reduces labor time. When material use is optimized, raft foundations reduce long-term maintenance costs. Beam systems achieve both rigidity and cost balance.

Disadvantages of Raft Foundations

1. Dependence on Soil Conditions

At high groundwater levels or in extremely weak soils, raft foundations may achieve the desired performance. In these situations, additional soil improvement is required, which can increase costs.

2. Cost and Material Intensity

Due to the large slab area, concrete and reinforcement quantities are substantial. For small structures or low loads, alternatives like isolated footings may be more economical.

3. Thermal Insulation and Moisture Control

Due to the large contact surface with the ground, heat loss and moisture transfer risks increase. Therefore, insulation layers should be carefully designed.

In Antalya’s emerging residential areas, particularly in Altıntaş and Aksu, the use of raft foundations in projects designed with a sustainable construction approach is crucial for both structural safety and long-term investment value.

Professional Implementation for Secure Structures

A foundation system inspires confidence through implementation accuracy, beyond engineering calculations alone.

A raft foundation, regardless of how well designed in theory, loses its durability when implemented correctly on site. Therefore, having the process managed by professional teams from the project phase to site supervision is critically important.

At Yükselen Mimari, we develop specialized raft foundation solutions according to each ground's structural characteristics.

Our engineering team conducts analyses in accordance with TS500 and the Turkish Building Earthquake Code, managing the entire process in a data-driven manner from load-bearing system design to concrete strength testing.

This approach creates a sustainable construction culture in terms of energy efficiency, maintenance costs, and longevity, while producing secure buildings.

Obtaining proper engineering support for raft foundation projects is decisive for investment protection as well as structural safety.

For professional consulting and soil analysis, you can contact our team through the Yükselen Mimari Contact Page.
